CURRENT STATUS

Modelname V126 2.jpg
New Model Name

We gave a new model name to our electrified Jaguar E-Type:
In reference to the legendary V12 we baptized it V126, because it is running on 126 Volts.

Vorführen T2 4.jpg
VW T2 did it too!

On 14th January 2022 the VW T2 also passed the vehicle inspection.

Now working on Jag 2.

emoji smile.png
emoji smile.png
emoji smile.png

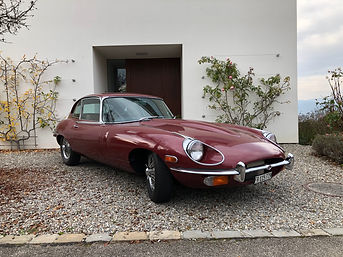

Eingelöst vor Haus 10.11.21.jpg
Vorführen 08.11.21.jpg
We did it!

On 8th November 2021  Jag 1 passed the vehicle inspection and two days later it is registered on our privat number plate - finally ready to drive.

What a moment!

Next step is the same procedure for the VW T2 and starting to work on the second E-Type.

emoji smile.png
emoji smile.png
emoji smile.png
Milestone!

On 21st September 2021  Jag and VW T2 passed the EMC and electrical security test according UN ECE R100. There is just a few minor details to adapt and we are ready for the vehicle inspection.

emoji smile.png
Bildschirmfoto 2021-09-30 um 07.49.18.png
Jaguar 1st test-drive successful!

1st test-drive 14th May 2021 was a success!

Now we attack the remaining "cosmetic" stuff like heating, power brake unit etc. to get the car ready for the vehicle inspection.

Jaguar full-up BMS Test successful

All batteries installed and wired, including Battery Management System. Test-run with full-up BMS and software successful.

Test-run BMS full-up.jpg
Jag & T2 ready for EMC & inspection

E-Type is completed and runs fine. On 28th August 2021 we took part in SEMS (Seeland E-Mobilitäts-Show) with both cars.

This year Swiss law changed and an official EMC-Report (electromagnetic compatibility) is now a prerequisite for the vehicle inspection. Presently working on EMC for Jag and VW T2.

VW T2 Completed

Software optimisation of the VW T2 is completed and it's running like hell.

Jaguar is in final wiring stage and making good progress.

emoji smile.png
VW T2 Pretest
successful

Mid October we conducted a short, clandestine driving test. T2 is running smooth and powerful .

Now working on optimizing software-parameters for BMS and motor-controller.

Batt & BMS Setup.jpg
Battery and BMS Test-Setup

Test-setup of 12 batteries, BMS components and software programming successful.

VW T2 short before Rollout

Battery box installed, wiring done, BMS & motor running. Just a few software settings and setups remaining to be done and we are ready for Rollout.

Motor installation

Assembly of electrical motor and clutch with subsequent installation onto the gearbox by means of the laser-cut connector-plate.

Fitting-Test

In June 2020 we made a last fitting-test with the battery boxes out of stainless steel before they went to the final welding.

This included a freedom of movement test of the Jaguars engine hood.

Laser-Cutting

The gearbox-motor connection-plate has been manufactured by laser-cutting.

Real size foam models

Simon and Felix constructed real size models of all the battery boxes out of foam material. This allowed reliable fitting tests and thus a verification of the academic plans and results.

Design of the battery boxes

Having all the needed data together, Simon started to develop detailed CAD models of the battery boxes for optimum battery box layout - hundreds of hours again.

This optimization has been pushed to the limits with respectable results:

VW T2: 74 kWh

Jaguar E-type 2+2: 53 kWh

Receiving the kits

All these calculations lead to a quite long list of parts - we are ready to order.

In February 2020 the first shipment arrives and it starts to get real :-)

Real life measurements and the huge conversion knowledge of Andreas allowed us to build CAD models for the motor-gearbox and clutch connector plates.

CAD modelling

In hundreds of hours Simon first built a CAD model of the relevant car volumes and structures.

This enabled us to make a first estimation of possible battery box volumes and consequently capacities.

Finding the cars

Andreas already had his VW T2 "on stock".

Simon and Felix found their Jaguars in the USA thanks to the knowledge and help of Mr. Zoss from Oldtimerclassics.

Felix bought his in September 2019 (Series 2, Year 1969) while Simon's followed in December 2019 (Series 1.5, Year 1967).

Simulation

Simulation of volumes, possible arrangements of battery packs, capacities, voltage etc.

Concept

First ideas and intentions autumn 2018
